Cladding Profiles

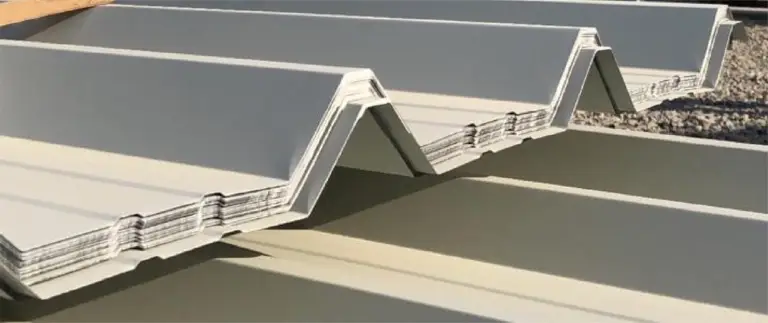

Corrugated Sheet
We produce Profile/Corrugated Sheets in various colours using PrePainted Galvanized Steel and Aluminum coils commonly referred to as PPGI and PPAL. Custom colors can also be requested. The profiles are easy to install with an overlapping system which prevents any leaking and gives protection from the elements. This product is supplied with Curves, RidgeCaps, Flashing and Angles which leads to a very simple installation process. Primary uses of single skin profile sheets are for Roofing, Wall Cladding, Liner Sheets for Standing Seam Systems, Fencing, Hoarding and Advertising Boards.
This low-profile panel has a generous edge for a double-tap weatherproof seal for roofing. The low, wide trapezoidal ribs resist crushing and encourage smooth water flow. The 762mm version is ideal for siding or an inexpensive, single lap roof panel. The closely spaced rib pattern casts an attractive, even shadow line. Available in pre-painted aluminum and steel, all in 762 mm wide coverage.
Advantages of The Single Skin Profile Sheet
- Sheets are of lightweight
- Strong tensile and longer durability
- Quick transformation, metals allows easy and rapid execution process
- Less manpower is required for the execution of the process
- Modification and extension of the products can easily be done at any point in time
- Economic and quick to install
- Available in different colors and can achieve any shape
- Available in different width and any length
Material Specifications
SmartClad Single Skin Roof and Wall Profile
| Material | Aluminium and Aluzinc | ||
| Thickness | 0.30 – 0.80 mm | ||
| Cover Width | 760 mm | ||
| Depth & Rip Spacing | 28 mm , 190 mm | ||
| Colors | Standard RAL colors and special colors | ||
Material Thickness | Aluminium and Aluzinc 0.30 mm – 0.80 mm | |||||||||||
| Cover Width | 760 mm | Aluminium & AluZinc (0.30 mm – 0.80 mm) | ||||||||||
| Cross Section Dimension of the Panel (mm) | Cover Width (760) | Depth (28) | Rib Spacing (190) | |||||||||
| Colors | Standard RAL colors and custom colors available | |||||||||||
| Coating / Finish | Pre Painted Polyester | Pre Painted PVDF | Plastisol | Mill Finish | ||||||||
